ICEINOX UK — Product range: 559 models of commercial refrigeration

Counter type refrigerators

Refrigerated counters for the pass and the prep line. Solid or glass doors, snack (60 cm) or GN (70 cm) depth, chiller and freezer versions.

17 ranges · 82 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

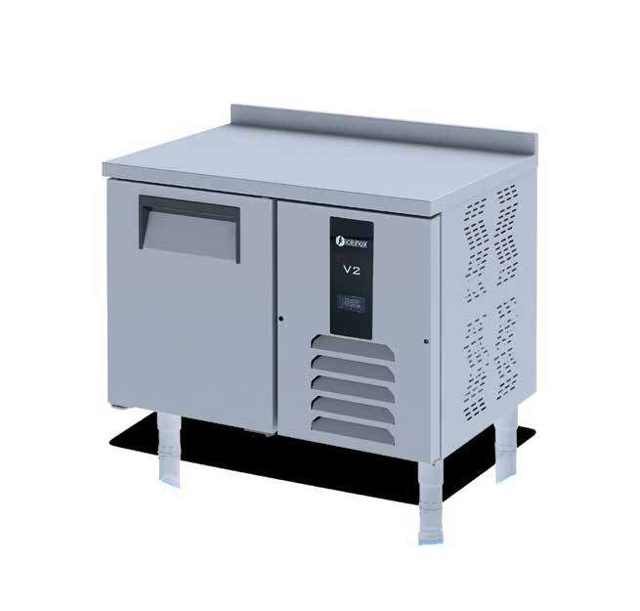

Counter Type Refrigerators – 1 Door

6 modelsR290 option

For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 125 N	− 10 / −22	100×60×85	125	0.65	65	1	1	AISI 304
CTS 125 N CR	− 10 / −22	100×60×85	125	0.65	65	1	1	AISI 430
CTS 150	−2 / +8	100×70×85	140	0.16	73	1	1	AISI 304
CTS 150 CR	−2 / +8	100×70×85	140	0.16	73	1	1	AISI 430
CTS 150 N	−10 / −22	100×70×85	140	0.65	73	1	1	AISI 304
CTS 150 N CR	−10 / −22	100×70×85	140	0.65	73	1	1	AISI 430

Enquire about this range

Counter Type Snack Refrigerators – 2 Doors

4 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 275	−2 / +8	150×60×85	275	0.321	135	2	2	AISI 304
CTS 275 CR	−2 / +8	150×60×85	275	0.321	135	2	2	AISI 430
CTS 275 N	−10 / −22	150×60×85	275	0.679	145	2	2	AISI 304
CTS 275 N CR	−10 / −22	150×60×85	275	0.679	145	2	2	AISI 430

Enquire about this range

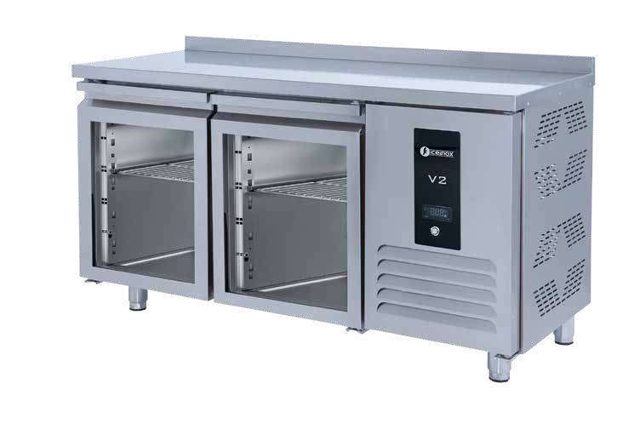

Counter Type Snack Refrigerators – 2 Glass Door

2 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 275-UG	−2 / +8	150×60×85	275	0.321	140	2	2	AISI 304
CTS 275 CR-UG	−2 / +8	150×60×85	275	0.321	140	2	2	AISI 430

Enquire about this range

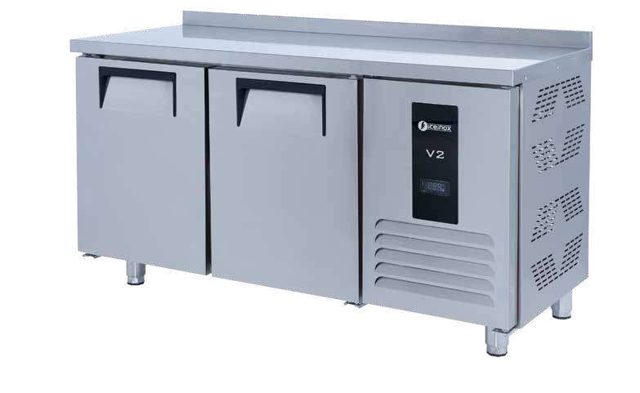

Counter Type GN Refrigerators – 2 Doors

4 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 330	−2 / +8	150×70×85	330	0.321	141	2	2	AISI 304
CTS 330 CR	−2 / +8	150×70×85	330	0.321	141	2	2	AISI 430
CTS 330 N	−10 / −22	150×70×85	330	0.679	150	2	2	AISI 304
CTS 330 N CR	−10 / −22	150×70×85	330	0.679	150	2	2	AISI 430

Enquire about this range

Counter Type GN Refrigerators – 2 Glass Door

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 330-UG	−2 / +8	150×70×85	330	0.321	146	2	2	AISI 304
CTS 330 CR-UG	−2 / +8	150×70×85	330	0.321	146	2	2	AISI 430

Enquire about this range

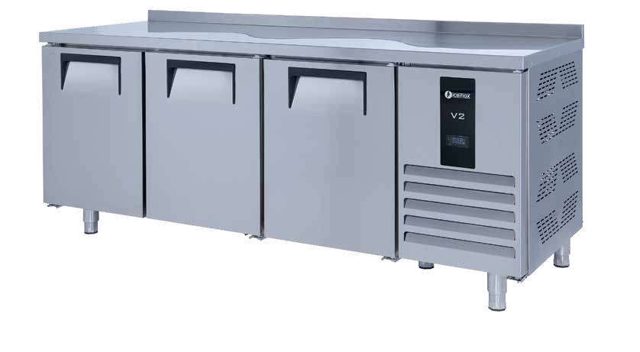

Counter Type Snack Refrigerators – 3 Door

4 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 440	−2 / +8	200×60×85	440	0.336	173	3	3	AISI 304
CTS 440 CR	−2 / +8	200×60×85	440	0.336	173	3	3	AISI 430
CTS 440 N	−10 / −22	200×60×85	440	0.749	183	3	3	AISI 304
CTS 440 N CR	−10 / −22	200×60×85	440	0.749	183	3	3	AISI 430

Enquire about this range

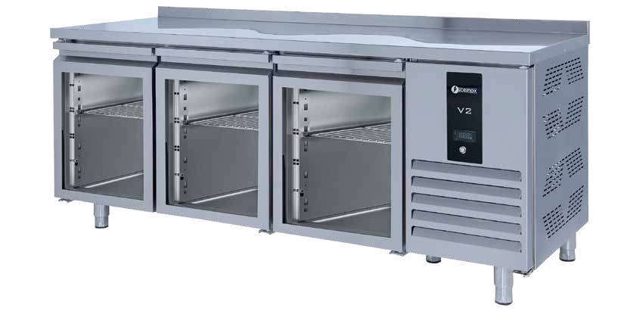

Counter Type Snack Refrigerators – 3 Glass Door

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 440-UG	−2 / +8	200×60×85	440	0.336	180	3	3	AISI 304
CTS 440 CR-UG	−2 / +8	200×60×85	440	0.336	180	3	3	AISI 430

Enquire about this range

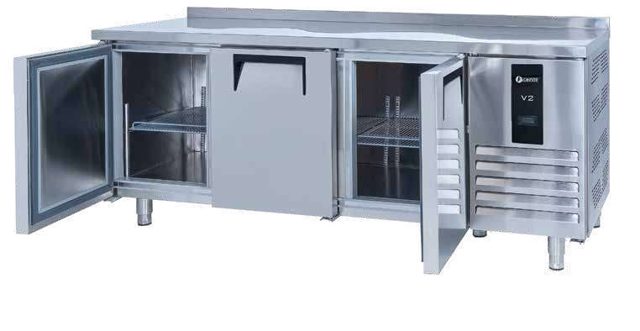

Counter Type GN Refrigerators – 3 Doors

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 515	−2 / +8	200×70×85	515	0.336	180	3	3	AISI 304
CTS 515 CR	−2 / +8	200×70×85	515	0.336	180	3	3	AISI 430
CTS 515 N	−10 / −22	200×70×85	515	0.749	190	3	3	AISI 304
CTS 515 N CR	−10 / −22	200×70×85	515	0.749	190	3	3	AISI 430

Enquire about this range

Counter Type GN Refrigerators – 3 Glass Door

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 515-UG	−2 / +8	200×70×85	515	0.336	190	3	3	AISI 304
CTS 515 CR-UG	−2 / +8	200×70×85	515	0.336	190	3	3	AISI 430

Enquire about this range

Counter Type Snack Refrigerators – 4 Doors

4 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 560	−2 / +8	250×60×85	560	0.501	205	4	4	AISI 304
CTS 560 CR	−2 / +8	250×60×85	560	0.501	205	4	4	AISI 430
CTS 560 N	−10 / −22	250×60×85	560	0.819	215	4	4	AISI 304
CTS 560 N CR	−10 / −22	250×60×85	560	0.819	215	4	4	AISI 430

Enquire about this range

Counter Type Snack Refrigerators – 4 Glass Door

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 560-UG	−2 / +8	250×60×85	560	0.501	215	4	4	AISI 304
CTS 560 CR-UG	−2 / +8	250×60×85	560	0.501	215	4	4	AISI 430

Enquire about this range

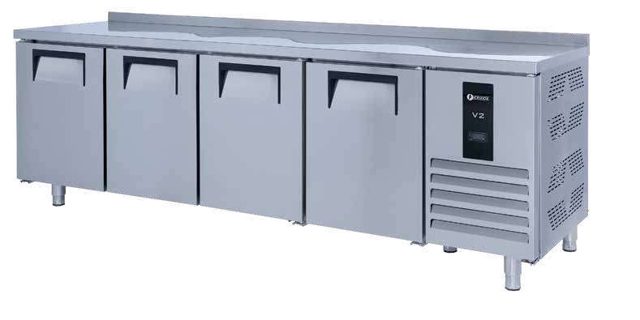

Counter Type GN Refrigerators – 4 Doors

4 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 650	−2 / +8	250×70×85	650	0.501	210	4	4	AISI 304
CTS 650 CR	−2 / +8	250×70×85	650	0.501	210	4	4	AISI 430
CTS 650 N	−10 / −22	250×70×85	650	0.819	220	4	4	AISI 304
CTS 650 N CR	−10 / −22	250×70×85	650	0.819	220	4	4	AISI 430

Enquire about this range

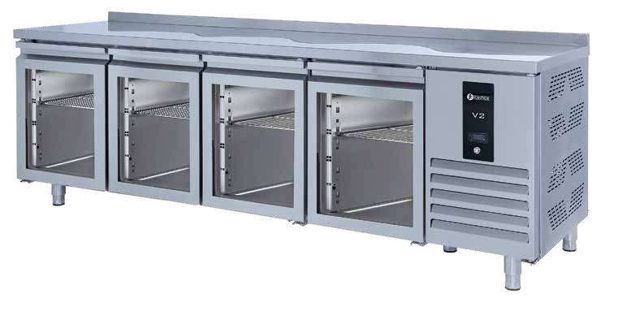

Counter Type GN Refrigerators – 4 Glass Doors

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 650-UG	−2 / +8	250×70×85	650	0.501	220	4	4	AISI 304
CTS 650 CR-UG	−2 / +8	250×70×85	650	0.501	220	4	4	AISI 430

Enquire about this range

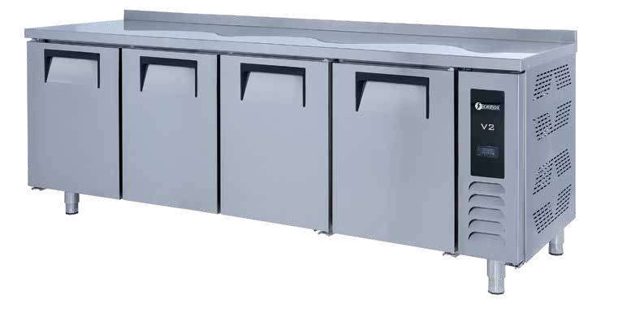

Counter Type Refrigerators – Short Model

12 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTN 275	−2 / +8	125×60×85	275	0.321	130	2	2	AISI 304
CTN 275 CR	−2 / +8	125×60×85	275	0.321	130	2	2	AISI 430
CTN 330	−2 / +8	125×70×85	330	0.321	136	2	2	AISI 304
CTN 330 CR	−2 / +8	125×70×85	330	0.321	136	2	2	AISI 430
CTN 440	−2 / +8	180×60×85	440	0.336	168	3	3	AISI 304
CTN 440 CR	−2 / +8	180×60×85	440	0.336	168	3	3	AISI 430
CTN 515	−2 / +8	180×70×85	515	0.336	175	3	3	AISI 304
CTN 515 CR	−2 / +8	180×70×85	515	0.336	175	3	3	AISI 430
CTN 560	−2 / +8	230×60×85	560	0.501	195	4	4	AISI 304
CTN 560 CR	−2 / +8	230×60×85	560	0.501	195	4	4	AISI 430
CTN 650	−2 / +8	230×70×85	650	0.501	205	4	4	AISI 304
CTN 650 CR	−2 / +8	230×70×85	650	0.501	205	4	4	AISI 430

Enquire about this range

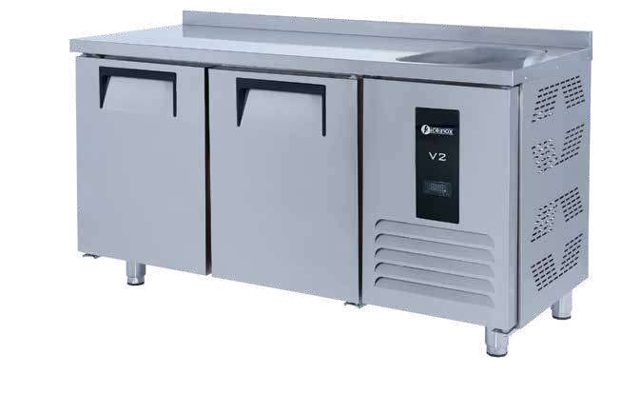

Counter Type Refrigerators – with Sink Unit

12 modelsR290 option

Marine version includes ‘Icecool marine’ system, legs and shelves
For 1/2 drawers; 1/1-150mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTS 275 S	−2 / +8	150×60×85	275	0.322	135	2	2	AISI 304
CTS 275 CR-S	−2 / +8	150×60×85	275	0.322	135	2	2	AISI 430
CTS 330 S	−2 / +8	150×70×85	330	0.322	100	2	2	AISI 304
CTS 330 CR-S	−2 / +8	150×70×85	330	0.322	100	2	2	AISI 430
CTS 440 S	−2 / +8	200×60×85	440	0.361	127	3	3	AISI 304
CTS 440 CR-S	−2 / +8	200×60×85	440	0.361	127	3	3	AISI 430
CTS 515 S	−2 / +8	200×70×85	515	0.361	135	3	3	AISI 304
CTS 515 CR-S	−2 / +8	200×70×85	515	0.361	135	3	3	AISI 430
CTS 560 S	−2 / +8	250×60×85	560	0.628	187	4	4	AISI 304
CTS 560 CR-S	−2 / +8	250×60×85	560	0.628	187	4	4	AISI 430
CTS 650 S	−2 / +8	250×70×85	650	0.628	195	4	4	AISI 304
CTS 650 CR-S	−2 / +8	250×70×85	650	0.628	195	4	4	AISI 430

Enquire about this range

Counter Type Refrigerators with 3 Doors – Monoblock

8 modelsR290 option

Des igned t o oper a t e in +43 °C ambient 65% humidity
N e w des ign f o r equal t emper a tur e dis tributio n
Z e r o ODP Inj ect ed 42 k g / m 3 P o lyur e t hane Ins ula t i o n
Digital c ont r o l l e r with eas y r ead sc r een

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTM 440	−2 / + 8	188×60×85	440	0.336	173	3	3	AISI 304
CTM 440 CR	−2 / + 8	188×60×85	440	0.336	173	3	3	AISI 430
CTM 440 N	−10 / −22	188×60×85	440	0.749	183	3	3	AISI 304
CTM 440 N CR	−10 / −22	188×60×85	440	0.749	183	3	3	AISI 430
CTM 515	−2 / + 8	188×70×85	515	0.336	1	8	33	AISI 304
CTM 515 CR	−2 / + 8	188×70×85	515	0.336	1	8	33	AISI 430
CTM 515 N	−10 / −22	188×70×85	515	0.749	190	3	3	AISI 304
CTM 515 N CR	−10 / −22	188×70×85	515	0.749	190	3	3	AISI 430

Enquire about this range

Counter Type Refrigerators with 4 Doors – Monoblock

8 modelsR290 option

Des igned t o oper a t e in +43 °C ambient 65% humidity
N e w des ign f o r equal t emper a tur e dis tributio n
Z e r o ODP Inj ect ed 42 k g / m 3 P o lyur e t hane Ins ula t i o n
Digital c ont r o l l e r with eas y r ead sc r een

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTM 560	−2 / + 8	237×60×85	560	0.501	205	4	4	AISI 304
CTM 560 CR	−2 / + 8	237×60×85	560	0.501	205	4	4	AISI 430
CTM 560 N	−10 / −22	237×60×85	560	0.819	215	4	4	AISI 304
CTM 560 N CR	−10 / −22	237×60×85	–	–	–	–	–	–
CTM 650	−2 / + 8	237×70×85	650	0.501	210	4	4	AISI 304
CTM 650 CR	−2 / + 8	237×70×85	650	0.501	210	4	4	AISI 430
CTM 650 N	−10 / −22	237×70×85	–	–	–	–	–	–
CTM 650 N CR	−10 / −22	237×70×85	–	–	–	–	–	–

Enquire about this range

Vertical type refrigerators

Upright storage cabinets in slim, snack and GN widths, one or two doors, chiller and freezer versions.

5 ranges · 20 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

Vertical Type Refrigerators – 1 Door – Slim Type

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
VTS 400	−2 / +8	63×65×200	400	0.32	104	1	2	AISI 304
VTS 400 CR	−2 / +8	63×65×200	400	0.32	104	1	2	AISI 430
VTS 400 N	−10 / −22	63×65×200	400	0.67	104	1	2	AISI 304
VTS 400 N CR	−10 / −22	63×65×200	400	0.67	104	1	2	AISI 430

Enquire about this range

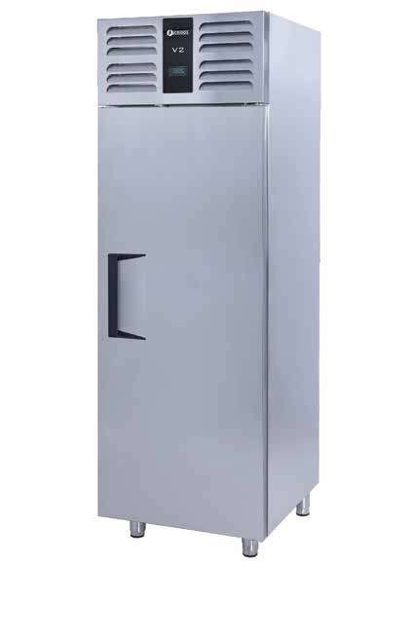

Vertical Type Snack Refrigerators – 1 Door

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
VTS 520	−2 / +8	70×77×210	520	0.321	150	1	3	AISI 304
VTS 520 CR	−2 / +8	70×77×210	520	0.321	150	1	3	AISI 430
VTS 520 N	−10 / −22	70×77×210	520	0.679	154	1	3	AISI 304
VTS 520 N CR	−10 / −22	70×77×210	520	0.679	154	1	3	AISI 430

Enquire about this range

Vertical Type GN Refrigerators – 1 Door

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
VTS 610	−2 / +8	70×87×210	610	0.321	158	1	3	AISI 304
VTS 610 CR	−2 / +8	70×87×210	610	0.321	158	1	3	AISI 430
VTS 610 N	−10 / −22	70×87×210	610	0.679	162	1	3	AISI 304
VTS 610 N CR	−10 / −22	70×87×210	610	0.679	162	1	3	AISI 430

Enquire about this range

Vertical Type Snack Refrigerators – 2 Doors

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
VTS 1150	−2 / +8	140×77×210	150	1	0.754	236	2	6	AISI 304
VTS 1150 CR	−2 / +8	140×77×210	150	1	0.754	236	2	6	AISI 430
VTS 1150 N	−10 / −22	140×77×210	150	1	0.981	242	2	6	AISI 304
VTS 1150 N CR	−10 / −22	140×77×210	150	1	0.981	242	2	6	AISI 430

Enquire about this range

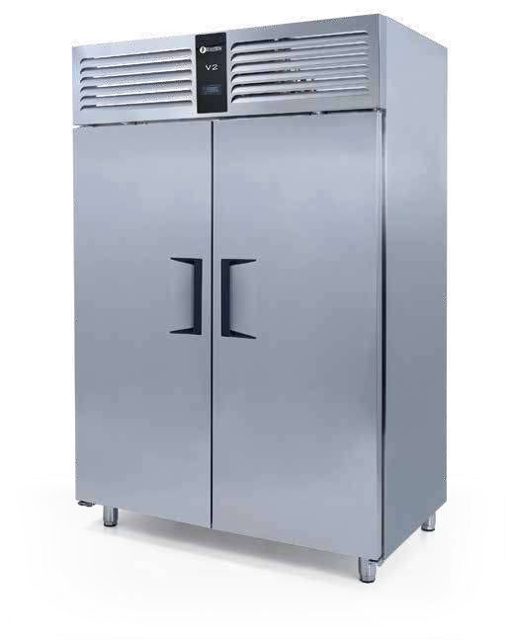

Vertical Type GN Refrigerators – 2 Doors

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
VTS 1340	−2 / +8	140×87×210	340	1	0.754	251	2	6	AISI 304
VTS 1340 CR	−2 / +8	140×87×210	340	1	0.754	251	2	6	AISI 430
VTS 1340 N	−10 / −22	140×87×210	340	1	0.981	257	2	6	AISI 304
VTS 1340 N CR	−10 / −22	140×87×210	340	1	0.981	257	2	6	AISI 430

Enquire about this range

Low level (chef base) refrigerators

Chef bases that carry the cooking line above them. Standard and short-height versions with two to four doors.

5 ranges · 32 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
For 1/1 drawers; 1/1-200mm Gn capacity
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
Marine version includes ‘Icecool marine’ system, legs and shelves
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

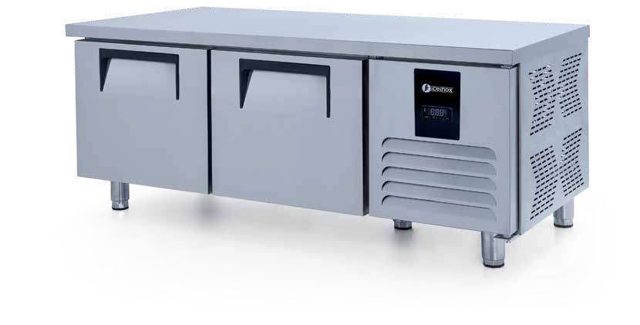

Low Level Refrigerators – 2 Doors

8 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
UTS 190	−2 / +8	140×60×60	190	0.321	115	2	2	AISI 304
UTS 190 CR	−2 / +8	140×60×60	190	0.321	115	2	2	AISI 430
UTS 190 N	−10 / −22	140×60×60	190	0.679	120	2	2	AISI 304
UTS 190 N CR	−10 / −22	140×60×60	190	0.679	120	2	2	AISI 430
UTS 220	−2 / +8	140×70×60	220	0.321	125	2	2	AISI 304
UTS 220 CR	−2 / +8	140×70×60	220	0.321	125	2	2	AISI 430
UTS 220 N	−10 / −22	140×70×60	220	0.679	130	2	2	AISI 304
UTS 220 N CR	−10 / −22	140×70×60	220	0.679	130	2	2	AISI 430

Enquire about this range

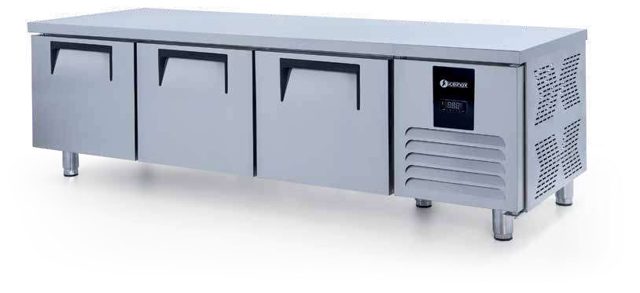

Low Level Refrigerators – 3 Doors

8 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
UTS 280	−2 / +8	200×60×60	280	0.336	160	3	3	AISI 304
UTS 280 CR	−2 / +8	200×60×60	280	0.336	160	3	3	AISI 430
UTS 280 N	−10 / −22	200×60×60	280	0.749	170	3	3	AISI 304
UTS 280 N CR	−10 / −22	200×60×60	280	0.749	170	3	3	AISI 430
UTS 330	−2 / +8	200×70×60	330	0.336	168	3	3	AISI 304
UTS 330 CR	−2 / +8	200×70×60	330	0.336	168	3	3	AISI 430
UTS 330 N	−10 / −22	200×70×60	330	0.749	178	3	3	AISI 304
UTS 330 N CR	−10 / −22	200×70×60	330	0.749	178	3	3	AISI 430

Enquire about this range

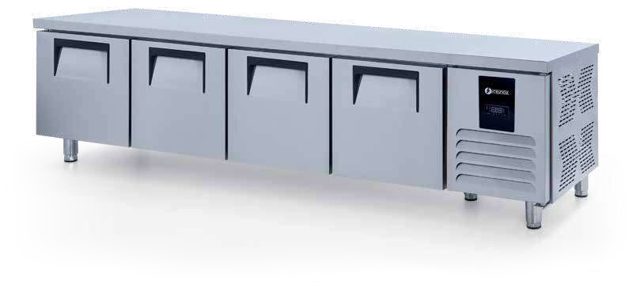

Low Level Refrigerators – 4 Doors

8 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
UTS 370	−2 / +8	240×60×60	370	0.501	187	4	4	AISI 304
UTS 370 CR	−2 / +8	240×60×60	370	0.501	187	4	4	AISI 430
UTS 370 N	−10 / −22	240×60×60	370	0.819	197	4	4	AISI 304
UTS 370 N CR	−10 / −22	240×60×60	370	0.819	197	4	4	AISI 430
UTS 450	−2 / +8	240×70×60	450	0.501	190	4	4	AISI 304
UTS 450 CR	−2 / +8	240×70×60	450	0.501	190	4	4	AISI 430
UTS 450 N	−10 / −22	240×70×60	450	0.819	200	4	4	AISI 304
UTS 450 N CR	−10 / −22	240×70×60	450	0.819	200	4	4	AISI 430

Enquire about this range

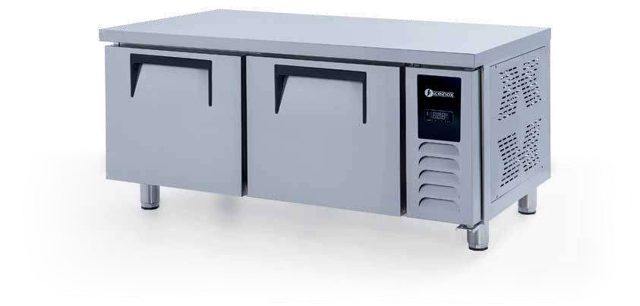

Low Level Refrigerators – 2 Doors – Short

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
UTN 190	−2 / +8	120×60×60	190	0.321	107	2	2	AISI 304
UTN 190 CR	−2 / +8	120×60×60	190	0.321	107	2	2	AISI 430
UTN 220	−2 / +8	120×70×60	220	0.321	118	2	2	AISI 304
UTN 220 CR	−2 / +8	120×70×60	220	0.321	118	2	2	AISI 430

Enquire about this range

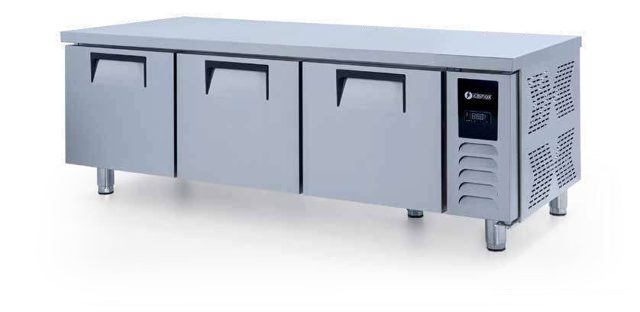

Low Level Refrigerators – 3 Doors – Short

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
UTN 280	−2 / +8	160×60×60	280	0.336	140	3	3	AISI 304
UTN 280 CR	−2 / +8	160×60×60	280	0.336	140	3	3	AISI 430
UTN 330	−2 / +8	160×70×60	330	0.336	150	3	3	AISI 304
UTN 330 CR	−2 / +8	160×70×60	330	0.336	150	3	3	AISI 430

Enquire about this range

Make up refrigerators

Preparation counters with refrigerated GN wells, in high and short versions, plus marble-top, tray-capacity and salad bar variants.

10 ranges · 45 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
Marine version includes ‘Icecool marine’ system, legs and shelves
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

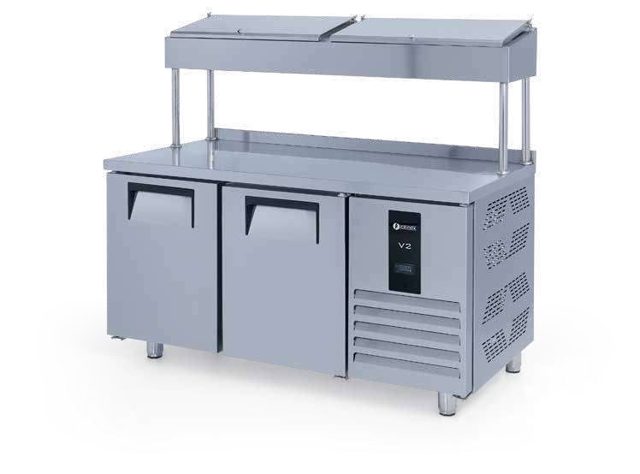

Make Up Refrigerators – 2 Doors – High

4 modelsR290 option

For 1/1 drawers; 1/1-200mm Gn capacity

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-H 275	−2 / +8	150×60×85/140	275	8	0.321	150	2	2	AISI 304
PTS-H 275 CR	−2 / +8	150×60×85/140	275	8	0.321	150	2	2	AISI 430
PTS-H 330	−2 / +8	150×70×85/140	330	8	0.321	160	2	2	AISI 304
PTS-H 330 CR	−2 / +8	150×70×85/140	330	8	0.321	160	2	2	AISI 430

Enquire about this range

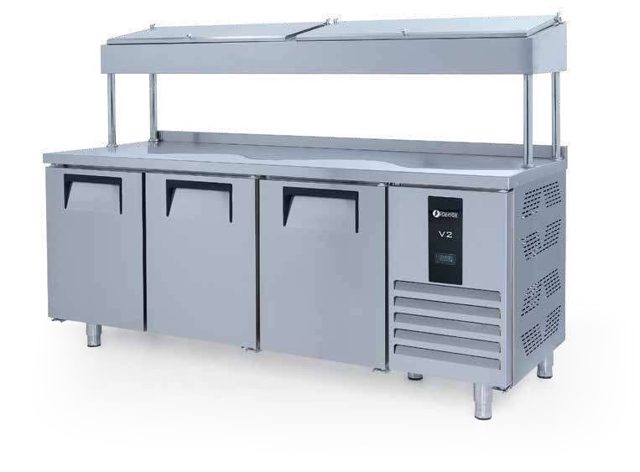

Make Up Refrigerators – 3 Doors – High

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-H 440	−2 / +8	200×60×85/143	440	12	0.336	185	3	3	AISI 304
PTS-H 440 CR	−2 / +8	200×60×85/143	440	12	0.336	185	3	3	AISI 430
PTS-H 515	−2 / +8	200×70×85/143	515	12	0.336	195	3	3	AISI 304
PTS-H 515 CR	−2 / +8	200×70×85/143	515	12	0.336	195	3	3	AISI 430

Enquire about this range

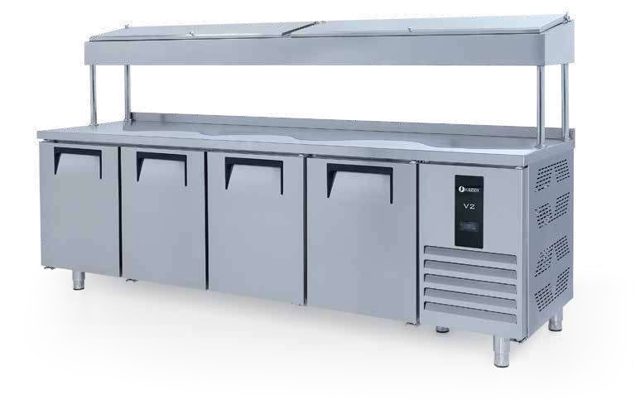

Make Up Refrigerators – 4 Doors – High

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-H 560	−2 / +8	250×60×85/143	560	15	0.501	200	4	4	AISI 304
PTS-H 560 CR	−2 / +8	250×60×85/143	560	15	0.501	200	4	4	AISI 430
PTS-H 650	−2 / +8	250×70×85/143	650	15	0.501	210	4	4	AISI 304
PTS-H 650 CR	−2 / +8	250×70×85/143	650	15	0.501	210	4	4	AISI 430

Enquire about this range

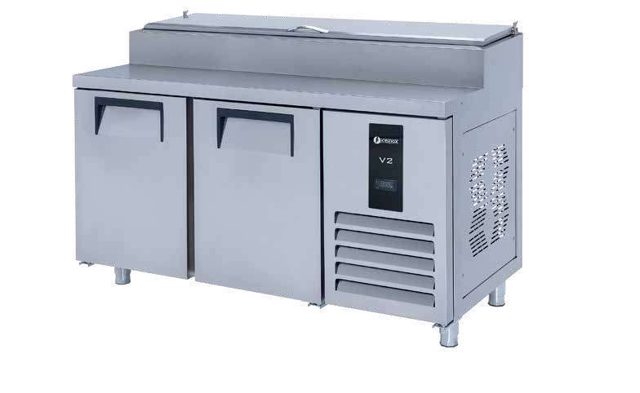

Make Up Refrigerators – 2 Doors – Short

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-L 330	−2 / +8	150×70×85/97	330	8	0.321	165	2	2	AISI 304
PTS-L 330 CR	−2 / +8	150×70×85/97	330	8	0.321	165	2	2	AISI 430

Enquire about this range

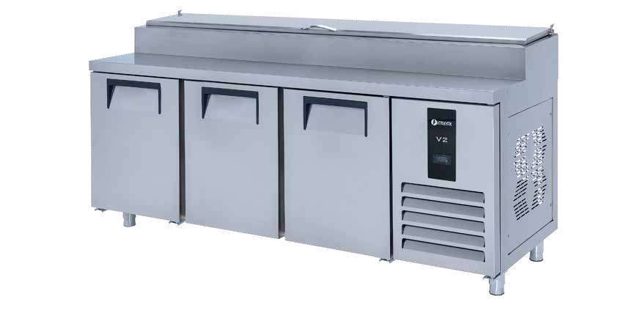

Make Up Refrigerators – 3 Doors – Short

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-L 515	−2 / +8	200×70×97	515	11	0.336	195	3	3	AISI 304
PTS-L 515 CR	−2 / +8	200×70×97	515	11	0.336	195	3	3	AISI 430

Enquire about this range

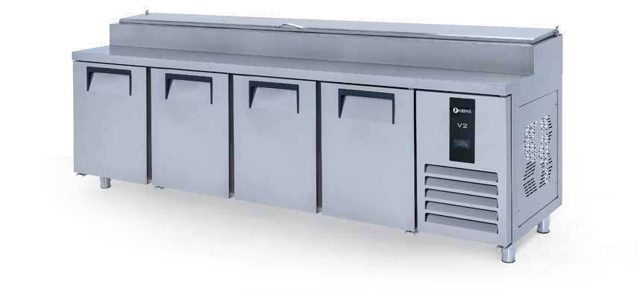

Make Up Refrigerators – 4 Doors – Short

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS-L 650	−2 / +8	250×70×97	650	14	0.501	215	4	4	AISI 304
PTS-L 650 CR	−2 / +8	250×70×97	650	14	0.501	215	4	4	AISI 430

Enquire about this range

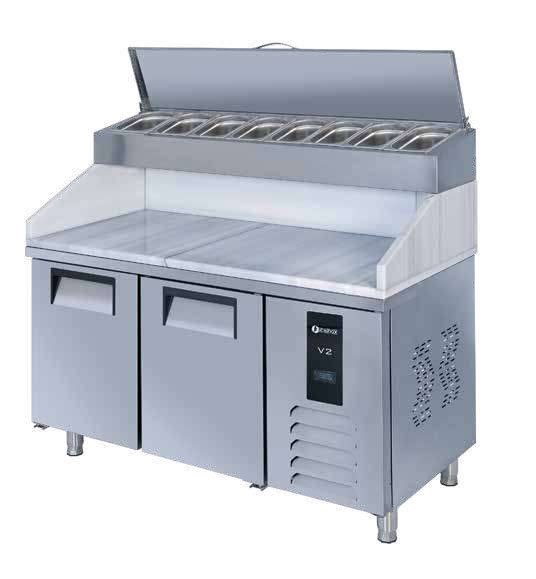

Make Up Refrigerators – Marble

12 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PBC-L 220	−2 / + 8	94×70×94	220	5	0.321	200	2	2	AISI 304
PBC-L 220 CR	−2 / + 8	94×70×94	220	5	0.321	200	2	2	AISI 430
PBC-L 330	−2 / + 8	140×70×94	330	7	0.336	240	3	3	AISI 304
PBC-L 330 CR	−2 / + 8	140×70×94	330	7	0.336	240	3	3	AISI 430
PBC-L 450	−2 / + 8	188×70×94	450	10	0.501	290	4	4	AISI 304
PBC-L 450 CR	−2 / + 8	188×70×94	450	10	0.501	290	4	4	AISI 430
PTS HM 330	−2 / +8	150×70×130	330	9	0.321	200	2	2	AISI 304
PTS HM 330 CR	−2 / +8	150×70×130	330	9	0.321	200	2	2	AISI 430
PTS HM 515	−2 / +8	200×70×130	515	12	0.336	240	3	3	AISI 304
PTS HM 515 CR	−2 / +8	200×70×130	515	12	0.336	240	3	3	AISI 430
PTS HM 650	−2 / +8	250×70×130	650	15	0.501	290	4	4	AISI 304
PTS HM 650 CR	−2 / +8	250×70×130	650	15	0.501	290	4	4	AISI 430

Enquire about this range

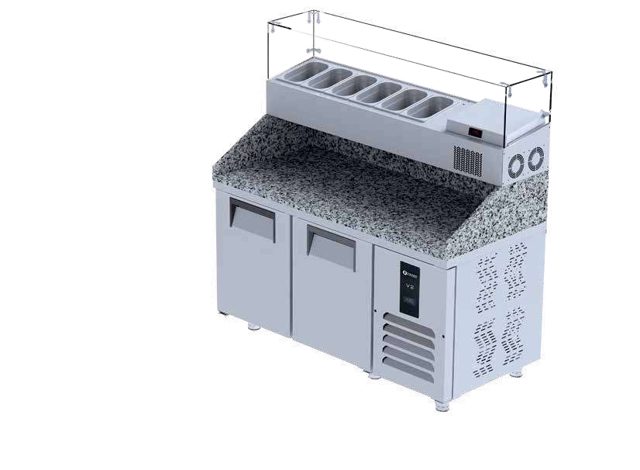

Make Up GN Refrigerators 40×60 Tray Capacity

7 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
PTS GR 330	−2 / +8	150×80×108/150	330	–	0.321	146	2	2	AISI 304
PTS GR 330 CR	−2 / +8	150×80×108/150	330	–	0.321	146	2	2	AISI 430
PTS GR 515	−2 / +8	200×80×108/150	515	–	0.336	247	3	3	AISI 304
PTS GR 515 CR	−2 / +8	200×80×108/150	515	–	0.336	247	3	3	AISI 430
VTP 150 GL	+4 / +10	150×34×45	–	6	0.2	36	–	–	–
VTP 200 GL	+4 / +10	200×34×45	–	10	0.2	45	–	–	–
VTP 250 GL	+4 / +10	250×34×45	–	12	0.2	48	–	–	–

Enquire about this range

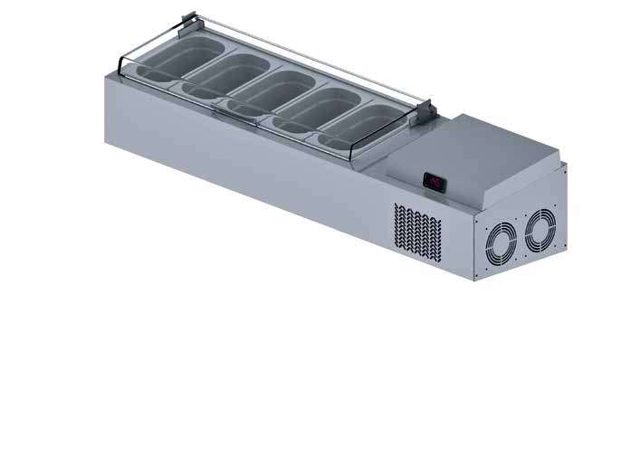

Countertop Salad Bars

6 modelsR290 option

Model	Temp °C	W×D×H cm	GN / trays	Power kW	Weight kg
VTP 132 GL	+4 / +10	132×34×45	5	0.2	34
VTP 150 GL	+4 / +10	150×34×45	6	0.2	36
VTP 178 GL	+4 / +10	178×34×45	8	0.2	42
VTP 200 GL	+4 / +10	200×34×45	10	0.2	45
VTP 225 GL	+4 / +10	225×34×45	11	0.2	53
VTP 250 GL	+4 / +10	250×34×45	12	0.2	55

Enquire about this range

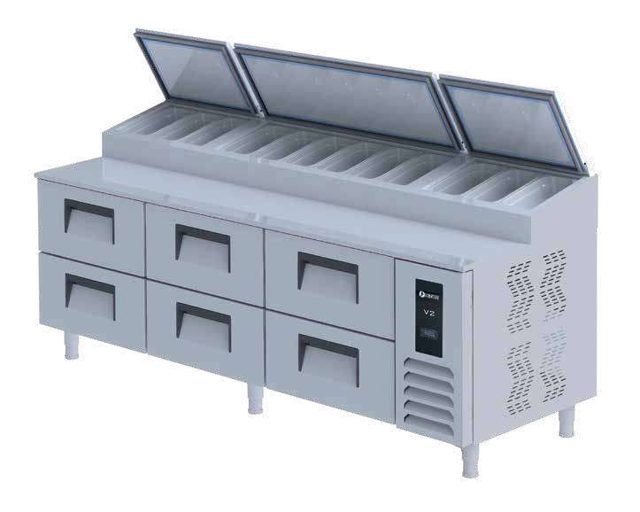

Drawer Type Pizza Preparation Counter

2 modelsR290 option

12 No’s 1/3-100 Gn saladbar capacity
6 No’s 2/1 Gn capacity

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Steel
PTS-L 800	−2 / +8	237×81×109	800	6	0.76	250	AISI 304
PTS-L 800 CR	−2 / +8	237×81×109	800	6	0.76	250	AISI 430

Enquire about this range

Service refrigerators

Service counters, preparation tables, crêpe tables and banquet trolleys for front-of-house and event kitchens.

6 ranges · 30 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

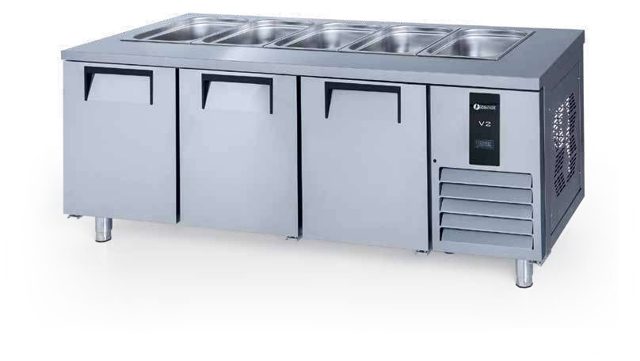

Service Refrigerators – 2, 3 and 4 Doors

6 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
STS 330	−2 / +8	150×70×85	330	4	0.321	135	2	2	AISI 304
STS 330 CR	−2 / +8	150×70×85	330	4	0.321	136	2	2	AISI 430
STS 515	−2 / +8	200×70×85	515	5	0.336	165	3	3	AISI 304
STS 515 CR	−2 / +8	200×70×85	515	5	0.336	165	3	3	AISI 430
STS 650	−2 / +8	250×70×85	650	6	0.501	180	4	4	AISI 304
STS 650 CR	−2 / +8	250×70×85	650	6	0.501	180	4	4	AISI 430

Enquire about this range

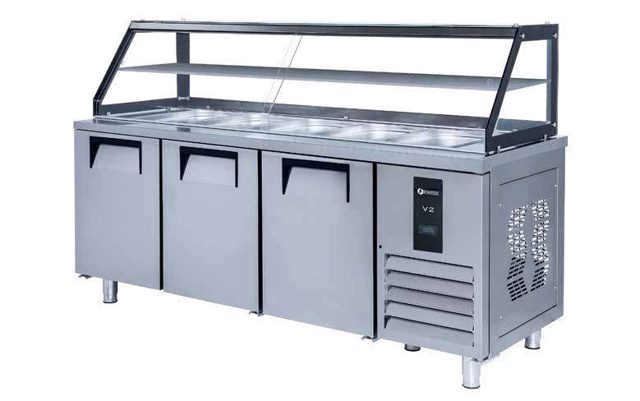

Service Refrigerators – 2, 3 and 4 Doors – with Glass

6 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
STS-G 330	−2 / +8	150×70×85/123	330	4	0.321	155	2	2	AISI 304
STS-G 330 CR	−2 / +8	150×70×85/123	330	4	0.321	155	2	2	AISI 430
STS-G 515	−2 / +8	200×70×85/123	515	5	0.336	185	3	3	AISI 304
STS-G 515 CR	−2 / +8	200×70×85/123	515	5	0.336	185	3	3	AISI 430
STS-G 650	−2 / +8	250×70×85/123	650	6	0.501	205	4	4	AISI 304
STS-G 650 CR	−2 / +8	250×70×85/123	650	6	0.501	205	4	4	AISI 430

Enquire about this range

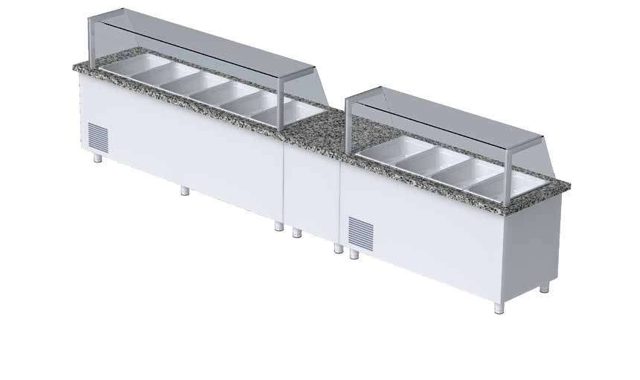

Service Refrigerators/Service Units

6 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
STS-F 330 CR	−2 / +8	150×80×132	330	4	0.321	225	2	2	AISI 430
STH-F 330 CR	+40 / +90	150×80×132	330	4	2.5	225	2	2	AISI 430
STS-F 515 CR	−2 / +8	200×80×132	515	5	0.336	297	3	3	AISI 304
STH-F 515 CR	+40 / +90	200×80×132	515	5	2.5	297	3	3	AISI 430
STS-F 650 CR	−2 / +8	250×80×132	650	6	0.501	366	4	4	AISI 430
STH-F 650 CR	+40 / +90	250×80×132	650	6	3.6	366	4	4	AISI 430

Enquire about this range

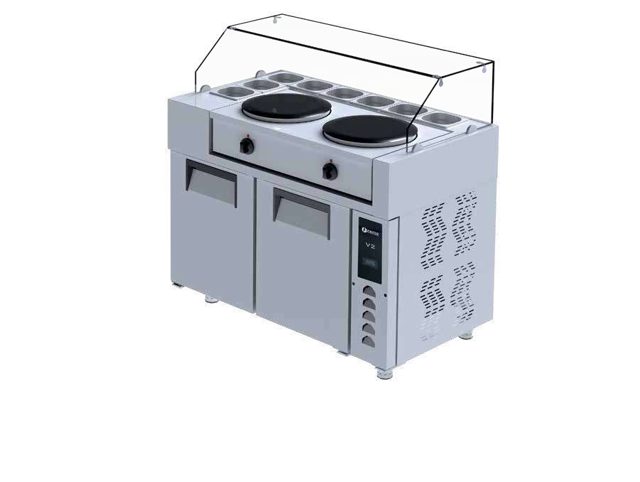

Crep Table Refrigerators

2 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
KRN 330	−2 / +8	125×70×133	330	8	0.357	158	2	2	AISI 304
KRN 330 CR	−2 / +8	125×70×133	330	8	0.357	158	2	2	AISI 430

Enquire about this range

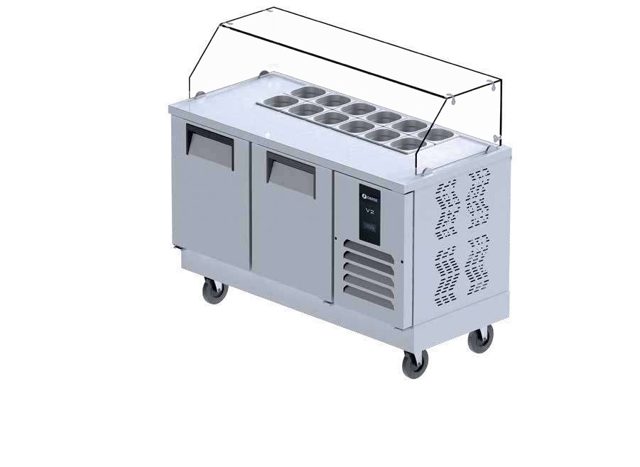

Preparing Table Refrigerators

6 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
FTS 330	−2 / +8	150×70×130	330	12	0.357	145	2	2	AISI 304
FTS 330 CR	−2 / +8	150×70×130	330	12	0.357	145	2	2	AISI 430
FTS 515	−2 / +8	200×70×130	515	18	0.436	165	3	3	AISI 304
FTS 515 CR	−2 / +8	200×70×130	515	18	0.436	165	3	3	AISI 430
FTS 650	−2 / +8	250×70×130	650	24	0.697	185	4	4	AISI 304
FTS 650 CR	−2 / +8	250×70×130	650	24	0.697	185	4	4	AISI 430

Enquire about this range

Cooling & Freezing Banquet Trolleys

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Steel
CB 12	−2 / +8	79×58×179	525	12	0.33	131	AISI 304
CB 12 CR	−2 / +8	79×58×179	525	12	0.33	131	AISI 430
CB 12 N	− 18 / − 22	79×58×179	525	12	0.57	131	AISI 304
CB 12 N CR	− 18 / − 22	79×58×179	525	12	0.57	131	AISI 430

Enquire about this range

Bar type refrigerators

Undercounter cabinets, cocktail stations and coffee-drawer counters sized for the bar.

3 ranges · 17 models

Standard across this group

Des igned t o o per a t e in +43° C ambie nt 6% 5 humidity
All r e f r i ger a t o r s can be pr o duc ed in marine v e r sion
Digital c o n t r o ller wit h eas y r ead s c r e e n
E r gonomi c do o r and handle desi gne d f o r e ase of o peni ng and cl eani n g
H ot gas def r o s t s y s t e m
I c e c o ol r e f riger a t ion s y s t em des igned t o be mos t t ecno l o gically adv anc ed and ener gy e fficie nt y e t
N e w desi gn f o r equal t emper a tur e dis tribution
W a s t e hea t r e c o v ery c o nde n s a t e v aporis er s y s t e m
Z e r o ODP Inje c t ed 42 k g / m 3 P o l y u r ethane Ins ula tio n

Undercounter Refrigerators

10 modelsR290 option

Designed to operate in +43 °C ambient 65% humidity
New design for equal temperature distribution
Zero ODP Injected 42 kg/m³ Polyurethane Insulation
Digital controller with easy read screen

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
OTS 140	−2 / +8	60×64×82	140	0.247	65	1	1	AISI 304
OTS 140 CR	−2 / +8	60×64×82	140	0.247	65	1	1	AISI 430
OTS 140 N	−10 / −22	60×64×82	140	0.229	72	1	1	AISI 304
OTS 140 N CR	−10 / −22	60×64×82	140	0.229	72	1	1	AISI 430
OTS 140 UG	−2 / +8	60×64×82	140	0.247	65	1	1	AISI 304
OTS 140 CR UG	−2 / +8	60×64×82	140	0.247	65	1	1	AISI 430
OTS 140 N UG	−10 / −22	60×64×82	140	0.229	72	1	1	AISI 304
OTS 140 N CR UG	−10 / −22	60×64×82	140	0.229	72	1	1	AISI 430
OTS 350	−2 / + 8	128×74×82	350	0.352	130	2	2	AISI 304
OTS 350 CR	−2 / + 8	128×74×82	350	0.352	130	2	2	AISI 430

Enquire about this range

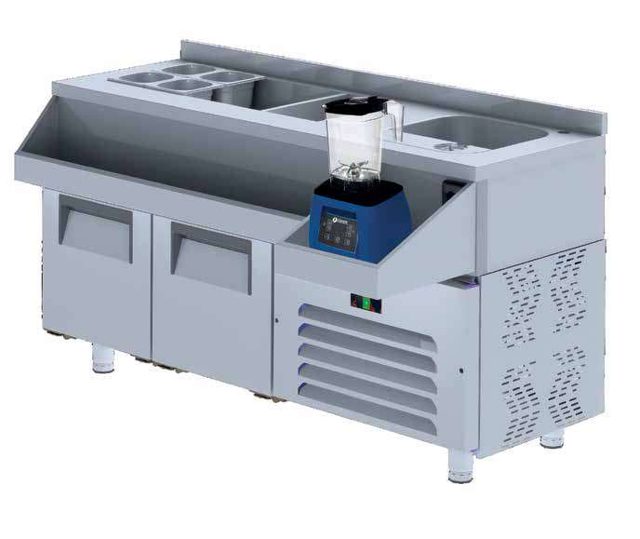

Cocktail Preparation Counter

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CCY 140	−2 / +8	120×60×85	190	0.17	110	2	2	AISI 304
CCY 140 CR	−2 / +8	120×60×85	190	0.17	110	2	2	AISI 430
CCY 190	−2 / +8	160×60×85	280	0.34	146	3	3	AISI 304
CCY 190 CR	−2 / +8	160×60×85	280	0.34	146	3	3	AISI 430

Enquire about this range

Counter Type Refrigerators with Coffee Drawer

3 modelsR290 option

Des igned t o oper a t e in +43 °C ambient 65% humidity
N e w des ign f o r equal t emper a tur e dis tributio n
Z e r o ODP Inj ect ed 42 k g / m 3 P o lyur e t hane Ins ula tio n
Digital c ont r o l l e r with eas y r ead scr een

Model	Temp °C	W×D×H cm	Volume L	Power kW	Weight kg	Doors	Shelves	Steel
CTC 275 CR	−2 / + 8	155×60×94	275	0.321	135	2	2	AISI 430
CTC 440 CR	−2 / + 8	210×60×94	440	0.336	173	3	3	AISI 430
CTC 560 CR	−2 / + 8	265×60×94	560	0.501	205	4	4	AISI 430

Enquire about this range

Bakery & patisserie refrigerators

Patisserie cabinets for 40×60 and 60×80 trays, counter patisserie units, −30 °C storage freezers and a retarder prover.

6 ranges · 29 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

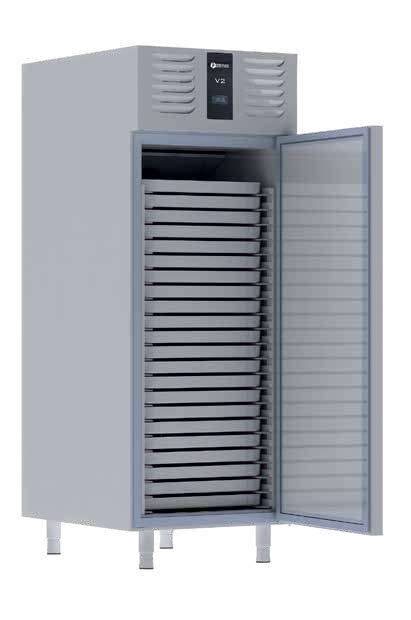

Vertical Type Patisserie Refrigerators – 1 Door – 40×60 Tray

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
VTS-T 610	−2 / +8	70×87×210	610	22	0.32	158	1	AISI 304
VTS-T 610 CR	−2 / +8	70×87×210	610	22	0.32	158	1	AISI 430
VTS-T 610 N	−10 / −22	70×87×210	610	22	0.7	162	1	AISI 304
VTS-T 610 N CR	−10 / −22	70×87×210	610	22	0.7	162	1	AISI 430

Enquire about this range

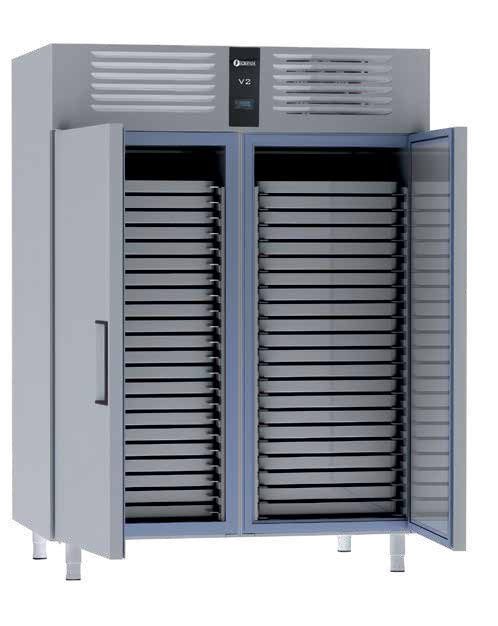

Vertical Patisserie Refrigerators – 2 Door – 40×60 Tray

4 modelsR290 option

All refrigerators can be produced in marine version
Marine version includes ‘Icecool marine’ system, legs and shelves

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
VTS T 1340	−2 / +8	140×87×210	340	1	0.754	251	2	AISI 304
VTS T 1340 CR	−2 / +8	140×87×210	340	1	0.754	251	2	AISI 430
VTS T 1340 N	−10 / −22	140×87×210	340	1	0.981	257	2	AISI 304
VTS T 1340 N CR	−10 / −22	140×87×210	340	1	0.981	257	2	AISI 430

Enquire about this range

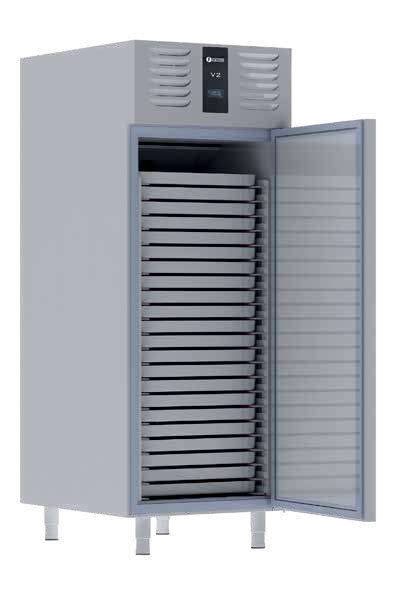

Vertical Type Patisserie Refrigerators – 1 Door – 60×80 Tray

8 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
VTS 730	−2 / +8	78×103×210	730	22	0.32	175	1	AISI 304
VTS 730 CR	−2 / +8	78×103×210	730	22	0.32	175	1	AISI 430
VTS 730 N	−10 / −22	78×103×210	730	22	0.7	182	1	AISI 304
VTS 730 N CR	−10 / −22	78×103×210	730	22	0.7	182	1	AISI 430
VTS 1460	−2 / +8	155×103×210	–	–	0.35	300	2	AISI 304
VTS 1460 CR	−2 / +8	155×103×210	–	–	0.35	300	2	AISI 430
VTS 1460 N	−10 / −22	155×103×210	–	–	0.8	350	2	AISI 304
VTS 1460 N CR	−10 / −22	155×103×210	–	–	0.8	350	2	AISI 430

Enquire about this range

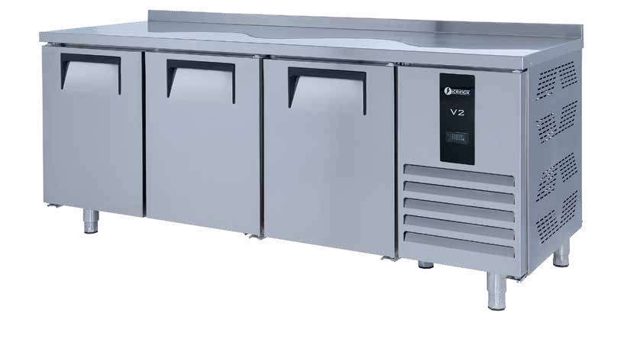

Counter Patisserie Refrigerators

8 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
CTS-T 400	−2 / +8	150×80×85	400	14	0.321	152	2	AISI 304
CTS-T 400 CR	−2 / +8	150×80×85	400	14	0.321	152	2	AISI 430
CTS-T 400 N	−10 / −22	150×80×85	400	14	0.69	162	2	AISI 304
CTS-T 400 N CR	−10 / −22	150×80×85	400	14	0.69	162	2	AISI 430
CTS-T 600	−2 / +8	200×81×85	600	21	0.34	220	3	AISI 304
CTS-T 600 CR	−2 / +8	200×81×85	600	21	0.34	220	3	AISI 430
CTS-T 600 N	−10 / −22	200×81×85	600	21	0.75	230	3	AISI 304
CTS-T 600 N CR	−10 / −22	200×81×85	600	21	0.75	230	3	AISI 430

Enquire about this range

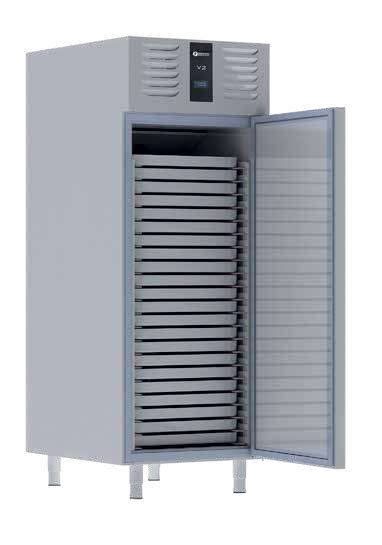

−30 °C Storage Freezer

4 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
VTF 800 N	−10 / −30	90×103×210	800	22	0.8	160	1	AISI 304
VTF 800 N CR	−10 / −30	90×103×210	800	22	0.8	160	1	AISI 430
VTF 1600 N	−10 / −30	180×103×210	–	–	1.1	300	2	AISI 304
VTF 1600 N CR	−10 / −30	180×103×210	–	–	1.1	300	2	AISI 430

Enquire about this range

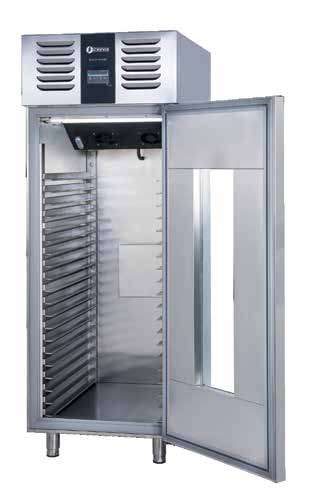

Retarder Prover

1 modelR290 option

Air managing system which provides inside refrigeration balance
Forthcoming real-time automated fermentation system

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Steel
RTP 730	−18 / +45	78×103×210	668	20	0.65	180	1	AISI 304

Enquire about this range

Special units

Dry-ageing cabinets and blast chiller/freezers.

2 ranges · 8 models

Standard across this group

Designed to operate in +43 °C ambient 65% humidity
All refrigerators can be produced in marine version
Digital controller with easy read screen
Ergonomic door and handle designed for ease of opening and cleaning
Hot gas defrost system
Icecool refrigeration system designed to be the most technologically advanced and energy efficient yet
New design for equal temperature distribution
Waste heat recovery condensate vaporiser system
Zero ODP Injected 42 kg/m³ Polyurethane Insulation

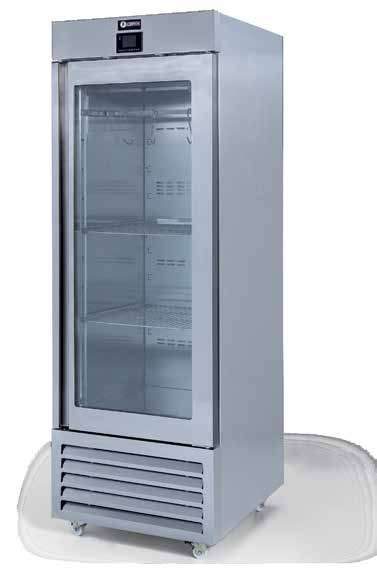

Dry Aged Refrigerators

3 modelsR290 option

Model	Temp °C	W×D×H cm	Volume L	GN / trays	Power kW	Weight kg	Doors	Shelves	Steel
DAG 140	−3 / +5	60×64×83	140	–	0.294	70	1	2	AISI 304
DAG 610	−3 / +5	70×80×210	610	–	0.98	158	1	3	AISI 304
DAG 1340	−3 / +5	140×80×210	340	1	1.03	251	2	6	AISI 304

Enquire about this range

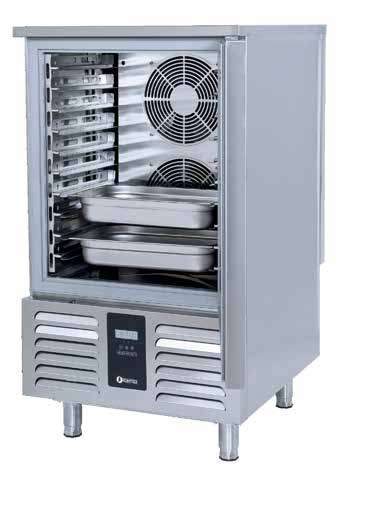

Blast Freezer/Chiller

5 modelsR290 option

Model	Cycles	W×D×H cm	GN 1/1	Chill kg	Freeze kg	Power kW	Weight kg	Steel
BLC 5-0	+70 / +3 chill · +70 / −18 freeze	90×101×85	5	20	12	1.32	151	AISI 304
BLC 5	+70 / +3 chill · +70 / −18 freeze	79×91×111	5	20	12	1.47	167	AISI 304
BLC 7	+70 / +3 chill · +70 / −18 freeze	79×91×124	7	25	18	1.65	176	AISI 304
BLC 10	+70 / +3 chill · +70 / −18 freeze	79×91×142	10	30	25	2.41	208	AISI 304
BLC 15	+70 / +3 chill · +70 / −18 freeze	79×91×179	15	30	25	3.94	276	AISI 304

Enquire about this range

Ice machines

Ice cube machines from 25 to 400 kg a day, all tropical climate class T.

1 range · 7 models

Ice cube machines

7 modelsR290 option

Model	Ice / day kg	Bin kg	Power W	W×D×H cm	Weight kg	Climate class
Ice Cube Machine 25 kg	25	6	480	32×51×66	37	T
Ice Cube Machine 35 kg	35	10	540	39×60×73	48	T
Ice Cube Machine 50 kg	45	20	620	48×60×82	56	T
Ice Cube Machine 90 kg	85	30	910	61×60×82	82	T
Ice Cube Machine 130 kg	130	60	1200	73×76×94	110	T
Ice Cube Machine 250 kg	200	–	1100	82×72×60 + bin 82×77×104	86	T
Ice Cube Machine 400 kg	400	–	2440	82×72×83 + bin 82×77×120	117	T

Enquire about this range

Modular cold rooms

Modular cold rooms in 80 mm and 120 mm panel thickness, from 1.8 m³ to 18.1 m³, for −2 / +8 °C and −10 / −22 °C operation. Panels lock together and can be dismantled and moved.

2 ranges · 289 sizes

Cold rooms – 80 mm panel – stainless steel (AISI 430) panels

147 sizes−2 / +8 °C · −10 / −22 °C

Show all 147 sizes

Model	Volume m³	W×D×H mm
CDS1212200	2	1200×1200×2000
CDS1215200	2.6	1200×1500×2000
CDS1218200	3.1	1200×1800×2000
CDS1221200	3.7	1200×2100×2000
CDS1224200	4.3	1200×2400×2000
CDS1227200	4.9	1200×2700×2000
CDS1230200	5.4	1200×3000×2000
CDS1512200	2.6	1500×1200×2000
CDS1515200	3.3	1500×1500×2000
CDS1518200	4	1500×1800×2000
CDS1521200	4.8	1500×2100×2000
CDS1524200	5.5	1500×2400×2000
CDS1527200	6.3	1500×2700×2000
CDS1530200	7	1500×3000×2000
CDS1812200	3.1	1800×1200×2000
CDS1815200	4	1800×1500×2000
CDS1818200	4.9	1800×1800×2000
CDS1821200	5.9	1800×2100×2000
CDS1824200	6.8	1800×2400×2000
CDS1827200	7.7	1800×2700×2000
CDS1830200	8.6	1800×3000×2000
CDS2112200	3.7	2100×1200×2000
CDS2115200	4.8	2100×1500×2000
CDS2118200	5.9	2100×1800×2000
CDS2121200	6.9	2100×2100×2000
CDS2124200	8	2100×2400×2000
CDS2127200	9.1	2100×2700×2000
CDS2130200	10.1	2100×3000×2000
CDS2412200	4.3	2400×1200×2000
CDS2415200	5.5	2400×1500×2000
CDS2418200	6.8	2400×1800×2000
CDS2421200	8	2400×2100×2000
CDS2424200	9.2	2400×2400×2000
CDS2427200	10.5	2400×2700×2000
CDS2430200	11.7	2400×3000×2000
CDS2712200	4.9	2700×1200×2000
CDS2715200	6.3	2700×1500×2000
CDS2718200	7.7	2700×1800×2000
CDS2721200	9.1	2700×2100×2000
CDS2724200	10.5	2700×2400×2000
CDS2727200	11.9	2700×2700×2000
CDS2730200	13.3	2700×3000×2000
CDS3012200	5.4	3000×1200×2000
CDS3015200	7	3000×1500×2000
CDS3018200	8.6	3000×1800×2000
CDS3021200	10.1	3000×2100×2000
CDS3024200	11.7	3000×2400×2000
CDS3027200	13.3	3000×2700×2000
CDS3030200	14.8	3000×3000×2000
CDS1212220	2.2	1200×1200×2200
CDS1215220	2.8	1200×1500×2200
CDS1218220	3.5	1200×1800×2200
CDS1221220	4.1	1200×2100×2200
CDS1224220	4.8	1200×2400×2200
CDS1227220	5.4	1200×2700×2200
CDS1230220	6	1200×3000×2200
CDS1512220	2.8	1500×1200×2200
CDS1515220	3.7	1500×1500×2200
CDS1518220	4.5	1500×1800×2200
CDS1521220	5.3	1500×2100×2200
CDS1524220	6.1	1500×2400×2200
CDS1527220	6.9	1500×2700×2200
CDS1530220	7.8	1500×3000×2200
CDS1812220	3.5	1800×1200×2200
CDS1815220	4.5	1800×1500×2200
CDS1818220	5.5	1800×1800×2200
CDS1821220	6.5	1800×2100×2200
CDS1824220	7.5	1800×2400×2200
CDS1827220	8.5	1800×2700×2200
CDS1830220	9.5	1800×3000×2200
CDS2112220	4.1	2100×1200×2200
CDS2115220	5.3	2100×1500×2200
CDS2118220	6.5	2100×1800×2200
CDS2121220	7.7	2100×2100×2200
CDS2124220	8.9	2100×2400×2200
CDS2127220	10.1	2100×2700×2200
CDS2130220	11.2	2100×3000×2200
CDS2412220	4.8	2400×1200×2200
CDS2415220	6.1	2400×1500×2200
CDS2418220	7.5	2400×1800×2200
CDS2421220	8.9	2400×2100×2200
CDS2424220	10.2	2400×2400×2200
CDS2427220	11.6	2400×2700×2200
CDS2430220	13	2400×3000×2200
CDS2712220	5.4	2700×1200×2200
CDS2715220	6.9	2700×1500×2200
CDS2718220	8.5	2700×1800×2200
CDS2721220	10.1	2700×2100×2200
CDS2724220	11.6	2700×2400×2200
CDS2727220	13.2	2700×2700×2200
CDS2730220	14.7	2700×3000×2200
CDS3012220	6	3000×1200×2200
CDS3015220	7.8	3000×1500×2200
CDS3018220	9.5	3000×1800×2200
CDS3021220	11.2	3000×2100×2200
CDS3024220	13	3000×2400×2200
CDS3027220	14.7	3000×2700×2200
CDS3030220	16.5	3000×3000×2200
CDS1212240	2.4	1200×1200×2400
CDS1215240	3.1	1200×1500×2400
CDS1218240	3.8	1200×1800×2400
CDS1221240	4.5	1200×2100×2400
CDS1224240	5.2	1200×2400×2400
CDS1227240	5.9	1200×2700×2400
CDS1230240	6.6	1200×3000×2400
CDS1512240	3.1	1500×1200×2400
CDS1515240	4	1500×1500×2400
CDS1518240	4.9	1500×1800×2400
CDS1521240	5.8	1500×2100×2400
CDS1524240	6.7	1500×2400×2400
CDS1527240	7.6	1500×2700×2400
CDS1530240	8.5	1500×3000×2400
CDS1812240	3.8	1800×1200×2400
CDS1815240	4.9	1800×1500×2400
CDS1818240	6	1800×1800×2400
CDS1821240	7.1	1800×2100×2400
CDS1824240	8.2	1800×2400×2400
CDS1827240	9.3	1800×2700×2400
CDS1830240	10.4	1800×3000×2400
CDS2112240	4.5	2100×1200×2400
CDS2115240	5.8	2100×1500×2400
CDS2118240	7.1	2100×1800×2400
CDS2121240	8.4	2100×2100×2400
CDS2124240	9.7	2100×2400×2400
CDS2127240	11	2100×2700×2400
CDS2130240	12.3	2100×3000×2400
CDS2412240	5.2	2400×1200×2400
CDS2415240	6.7	2400×1500×2400
CDS2418240	8.2	2400×1800×2400
CDS2421240	9.7	2400×2100×2400
CDS2424240	11.2	2400×2400×2400
CDS2427240	12.7	2400×2700×2400
CDS2430240	14.2	2400×3000×2400
CDS2712240	5.9	2700×1200×2400
CDS2715240	7.6	2700×1500×2400
CDS2718240	9.3	2700×1800×2400
CDS2721240	11	2700×2100×2400
CDS2724240	12.7	2700×2400×2400
CDS2727240	14.5	2700×2700×2400
CDS2730240	16.2	2700×3000×2400
CDS3012240	6.6	3000×1200×2400
CDS3015240	8.5	3000×1500×2400
CDS3018240	10.4	3000×1800×2400
CDS3021240	12.3	3000×2100×2400
CDS3024240	14.2	3000×2400×2400
CDS3027240	16.2	3000×2700×2400
CDS3030240	18.1	3000×3000×2400

Enquire about this range

Cold rooms – 120 mm panel – painted galvanised steel panels

142 sizes−2 / +8 °C · −10 / −22 °C

Show all 142 sizes

Model	Volume m³	W×D×H mm
CDG1212200	1.6	1200×1200×2000
CDG1215200	2.1	1200×1500×2000
CDG1218200	2.6	1200×1800×2000
CDG1221200	3.1	1200×2100×2000
CDG1224200	3.6	1200×2400×2000
CDG1227200	4.2	1200×2700×2000
CDG1230200	4.7	1200×3000×2000
CDG1512200	2.1	1500×1200×2000
CDG1515200	2.8	1500×1500×2000
CDG1518200	3.5	1500×1800×2000
CDG1521200	4.1	1500×2100×2000
CDG1524200	4.8	1500×2400×2000
CDG1527200	5.5	1500×2700×2000
CDG1530200	6.1	1500×3000×2000
CDG1812200	2.6	1800×1200×2000
CDG1815200	3.5	1800×1500×2000
CDG1818200	4.3	1800×1800×2000
CDG1821200	5.1	1800×2100×2000
CDG1824200	5.9	1800×2400×2000
CDG1827200	6.8	1800×2700×2000
CDG1830200	7.6	1800×3000×2000
CDG2112200	3.1	2100×1200×2000
CDG2115200	4.1	2100×1500×2000
CDG2118200	5.1	2100×1800×2000
CDG2121200	6.1	2100×2100×2000
CDG2124200	7.1	2100×2400×2000
CDG2127200	8.1	2100×2700×2000
CDG2412200	3.6	2400×1200×2000
CDG2415200	4.8	2400×1500×2000
CDG2418200	5.9	2400×1800×2000
CDG2421200	7.1	2400×2100×2000
CDG2424200	8.2	2400×2400×2000
CDG2427200	9.4	2400×2700×2000
CDG2430200	10.5	2400×3000×2000
CDG2712200	4.2	2700×1200×2000
CDG2715200	5.5	2700×1500×2000
CDG2718200	6.8	2700×1800×2000
CDG2721200	8.1	2700×2100×2000
CDG2724200	9.4	2700×2400×2000
CDG2727200	10.7	2700×2700×2000
CDG2730200	11.9	2700×3000×2000
CDG3012200	4.7	3000×1200×2000
CDG3015200	6.1	3000×1500×2000
CDG3018200	7.6	3000×1800×2000
CDG3024200	10.5	3000×2400×2000
CDG3027200	11.9	3000×2700×2000
CDG3030200	13.4	3000×3000×2000
CDG1212220	1.8	1200×1200×2200
CDG1215220	2.4	1200×1500×2200
CDG1218220	2.9	1200×1800×2200
CDG1221220	3.5	1200×2100×2200
CDG1224220	4.1	1200×2400×2200
CDG1227220	4.6	1200×2700×2200
CDG1230220	5.2	1200×3000×2200
CDG1512220	2.4	1500×1200×2200
CDG1515220	3.1	1500×1500×2200
CDG1518220	3.9	1500×1800×2200
CDG1521220	4.6	1500×2100×2200
CDG1524220	5.3	1500×2400×2200
CDG1527220	6.1	1500×2700×2200
CDG1530220	6.8	1500×3000×2200
CDG1812220	2.9	1800×1200×2200
CDG1815220	3.9	1800×1500×2200
CDG1818220	4.8	1800×1800×2200
CDG1821220	5.7	1800×2100×2200
CDG1824220	6.6	1800×2400×2200
CDG1827220	7.5	1800×2700×2200
CDG1830220	8.4	1800×3000×2200
CDG2112220	3.5	2100×1200×2200
CDG2115220	4.6	2100×1500×2200
CDG2118220	5.7	2100×1800×2200
CDG2121220	6.8	2100×2100×2200
CDG2124220	7.9	2100×2400×2200
CDG2130220	10.1	2100×3000×2200
CDG2412220	4.1	2400×1200×2200
CDG2415220	5.3	2400×1500×2200
CDG2418220	6.6	2400×1800×2200
CDG2421220	7.9	2400×2100×2200
CDG2424220	9.1	2400×2400×2200
CDG2427220	10.4	2400×2700×2200
CDG2430220	11.7	2400×3000×2200
CDG2712220	4.6	2700×1200×2200
CDG2715220	6.1	2700×1500×2200
CDG2718220	7.5	2700×1800×2200
CDG2724220	10.4	2700×2400×2200
CDG2727220	11.9	2700×2700×2200
CDG2730220	13.3	2700×3000×2200
CDG3012220	5.2	3000×1200×2200
CDG3015220	6.8	3000×1500×2200
CDG3018220	8.4	3000×1800×2200
CDG3021220	10.1	3000×2100×2200
CDG3024220	11.7	3000×2400×2200
CDG3027220	13.3	3000×2700×2200
CDG3030220	14.9	3000×3000×2200
CDG1215240	2.6	1200×1500×2400
CDG1218240	3.2	1200×1800×2400
CDG1221240	3.9	1200×2100×2400
CDG1224240	4.5	1200×2400×2400
CDG1227240	5.1	1200×2700×2400
CDG1230240	5.7	1200×3000×2400
CDG1512240	2.6	1500×1200×2400
CDG1515240	3.4	1500×1500×2400
CDG1518240	4.2	1500×1800×2400
CDG1521240	5.1	1500×2100×2400
CDG1524240	5.9	1500×2400×2400
CDG1527240	6.7	1500×2700×2400
CDG1530240	7.5	1500×3000×2400
CDG1812240	3.2	1800×1200×2400
CDG1815240	4.2	1800×1500×2400
CDG1818240	5.3	1800×1800×2400
CDG1821240	6.3	1800×2100×2400
CDG1824240	7.3	1800×2400×2400
CDG1827240	8.3	1800×2700×2400
CDG1830240	9.3	1800×3000×2400
CDG2112240	3.9	2100×1200×2400
CDG2115240	5.1	2100×1500×2400
CDG2118240	6.3	2100×1800×2400
CDG2121240	7.5	2100×2100×2400
CDG2124240	8.7	2100×2400×2400
CDG2127240	9.9	2100×2700×2400
CDG2130240	11.1	2100×3000×2400
CDG2412240	4.5	2400×1200×2400
CDG2415240	5.9	2400×1500×2400
CDG2418240	7.3	2400×1800×2400
CDG2421240	8.7	2400×2100×2400
CDG2424240	10.1	2400×2400×2400
CDG2427240	11.5	2400×2700×2400
CDG2430240	12.9	2400×3000×2400
CDG2712240	5.1	2700×1200×2400
CDG2715240	6.7	2700×1500×2400
CDG2718240	8.3	2700×1800×2400
CDG2721240	9.9	2700×2100×2400
CDG2724240	11.5	2700×2400×2400
CDG2727240	13.1	2700×2700×2400
CDG2730240	14.7	2700×3000×2400
CDG3012240	5.7	3000×1200×2400
CDG3015240	7.5	3000×1500×2400
CDG3018240	9.3	3000×1800×2400
CDG3021240	11.1	3000×2100×2400
CDG3024240	12.9	3000×2400×2400
CDG3027240	14.7	3000×2700×2400
CDG3030240	16.5	3000×3000×2400

Enquire about this range

Specifications are taken from the ICEINOX 2025 product catalogue and may change without notice. CR suffix denotes AISI 430 exterior; N denotes freezer (−10 / −22 °C); UG denotes glass doors. Marine versions and R290 refrigerant are available on request across the cabinet range.

Request a UK quote

Every cabinet in the range, with the numbers.

Counter type refrigerators

Counter Type Refrigerators – 1 Door

Counter Type Snack Refrigerators – 2 Doors

Counter Type Snack Refrigerators – 2 Glass Door

Counter Type GN Refrigerators – 2 Doors

Counter Type GN Refrigerators – 2 Glass Door

Counter Type Snack Refrigerators – 3 Door

Counter Type Snack Refrigerators – 3 Glass Door

Counter Type GN Refrigerators – 3 Doors

Counter Type GN Refrigerators – 3 Glass Door

Counter Type Snack Refrigerators – 4 Doors

Counter Type Snack Refrigerators – 4 Glass Door

Counter Type GN Refrigerators – 4 Doors

Counter Type GN Refrigerators – 4 Glass Doors

Counter Type Refrigerators – Short Model

Counter Type Refrigerators – with Sink Unit

Counter Type Refrigerators with 3 Doors – Monoblock

Counter Type Refrigerators with 4 Doors – Monoblock

Vertical type refrigerators

Vertical Type Refrigerators – 1 Door – Slim Type

Vertical Type Snack Refrigerators – 1 Door

Vertical Type GN Refrigerators – 1 Door

Vertical Type Snack Refrigerators – 2 Doors

Vertical Type GN Refrigerators – 2 Doors

Low level (chef base) refrigerators

Low Level Refrigerators – 2 Doors

Low Level Refrigerators – 3 Doors

Low Level Refrigerators – 4 Doors

Low Level Refrigerators – 2 Doors – Short

Low Level Refrigerators – 3 Doors – Short

Make up refrigerators

Make Up Refrigerators – 2 Doors – High

Make Up Refrigerators – 3 Doors – High

Make Up Refrigerators – 4 Doors – High

Make Up Refrigerators – 2 Doors – Short

Make Up Refrigerators – 3 Doors – Short

Make Up Refrigerators – 4 Doors – Short

Make Up Refrigerators – Marble

Make Up GN Refrigerators 40×60 Tray Capacity

Countertop Salad Bars

Drawer Type Pizza Preparation Counter

Service refrigerators

Service Refrigerators – 2, 3 and 4 Doors

Service Refrigerators – 2, 3 and 4 Doors – with Glass

Service Refrigerators/Service Units

Crep Table Refrigerators

Preparing Table Refrigerators

Cooling & Freezing Banquet Trolleys

Bar type refrigerators

Undercounter Refrigerators

Cocktail Preparation Counter

Counter Type Refrigerators with Coffee Drawer

Bakery & patisserie refrigerators

Vertical Type Patisserie Refrigerators – 1 Door – 40×60 Tray

Vertical Patisserie Refrigerators – 2 Door – 40×60 Tray

Vertical Type Patisserie Refrigerators – 1 Door – 60×80 Tray

Counter Patisserie Refrigerators

−30 °C Storage Freezer

Retarder Prover

Special units

Dry Aged Refrigerators

Blast Freezer/Chiller

Ice machines

Ice cube machines

Modular cold rooms

Cold rooms – 80 mm panel – stainless steel (AISI 430) panels

Cold rooms – 120 mm panel – painted galvanised steel panels
